The front and rear axles of the tipper semi trailer chassis are now equipped with stabilizer bars to prevent tipper semi trailer rollover, which greatly improves safety performance, and there is also a lateral dual hydraulic shock absorber under the cab, which also has the prevention Roll function.

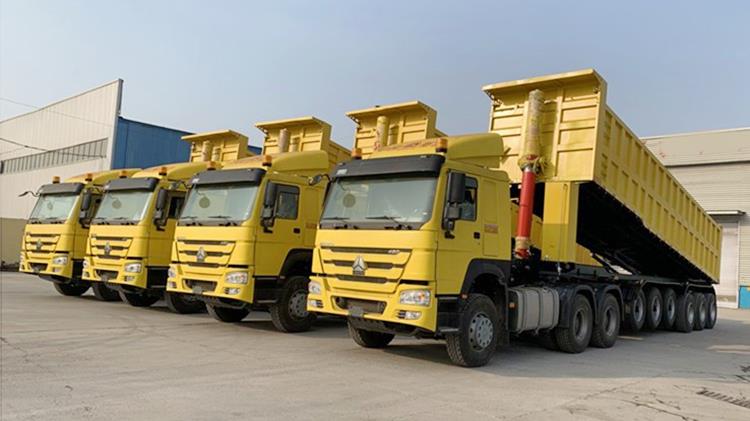

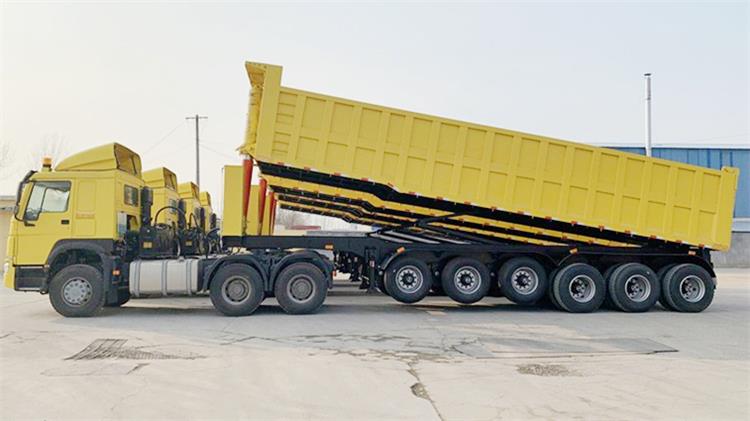

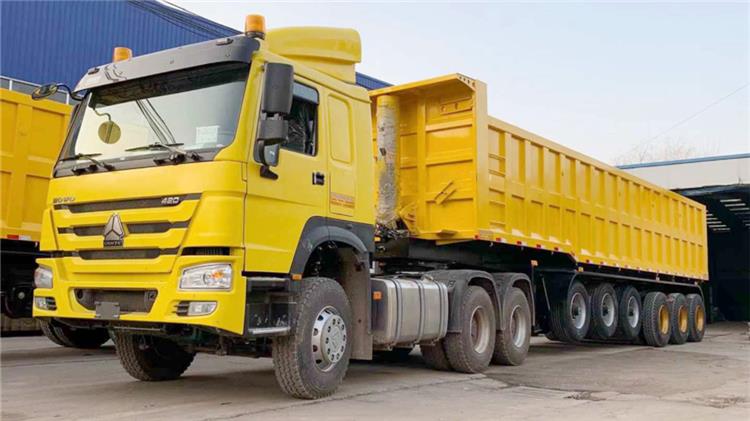

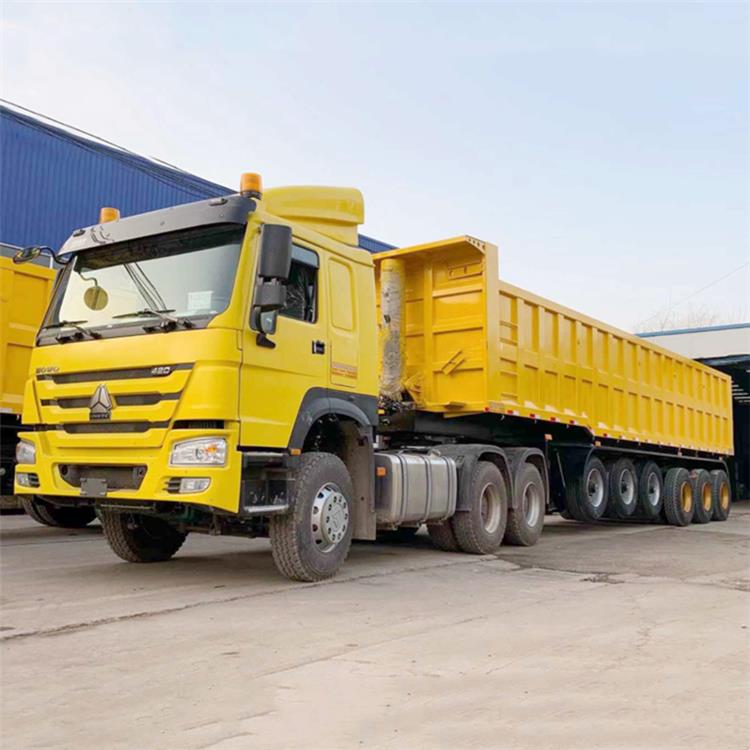

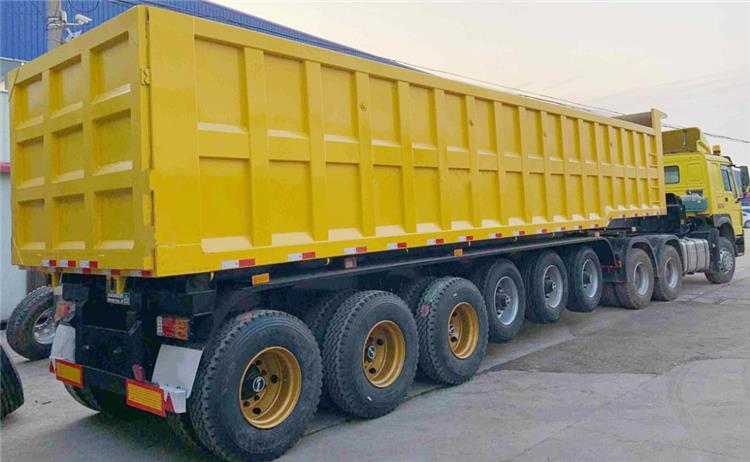

45CBM Tipper Semi Trailer Price In Nigeria | Tipper Tractor Trailer for Sale
45CBM Tipper Semi Trailer Price In Nigeria | Tipper Tractor Trailer for Sale
45CBM Tipper Semi Trailer Price In Nigeria | Tipper Tractor Trailer for Sale
45CBM Tipper Semi Trailer Price In Nigeria | Tipper Tractor Trailer for Sale
45CBM Tipper Semi Trailer Price In Nigeria | Tipper Tractor Trailer for Sale
Dimension: 11280mmx2495mm x3970mm ( inside dimension )
Main beam: Height: 480mm-500mm, Upper plate: 16mm-25mm, Middle plate: 12mm-20mm, Lower plate: 18mm-25mm, Material: T700 steel.
Tare Weight (semi trailer): About 15600kg
Total volume(m³): 45cbm
Side wall thickness: 4 - 6mm
End plate: 8mm

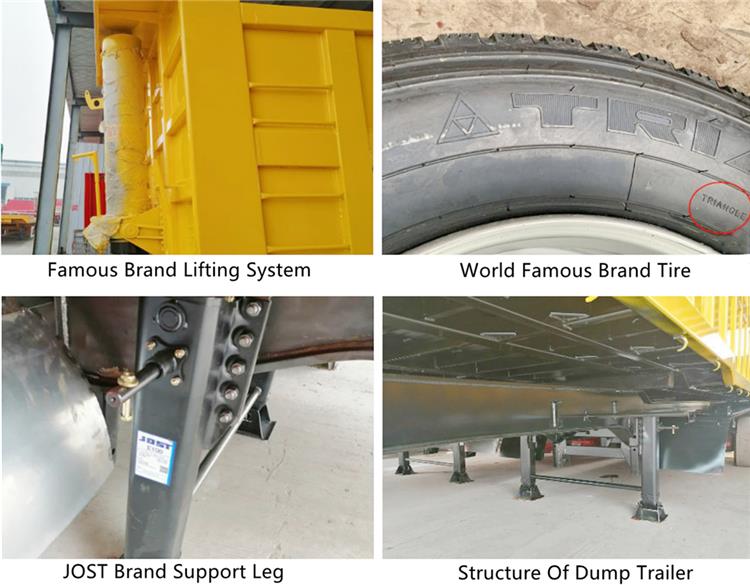

Lifting System: Full set of HYVA lifting cylinder
Axle: 13T/16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20 or 9.00-20
Tire: 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
