The cargo of the 34 Ton side dump trailer is multi-reinforced, especially the side walls, which are reinforced by double beams. 34 Ton side dump trailer main beam. The height of the middle plate is 480 mm, and it adopts a double 6+6 mm plate design. The upper plate is 14mm and the bottom plate is 16mm.
34 Ton Side Dump Trailer for Sale In Trinidad and Tobago - Side dump trailer is another type of dump trailer, and it allows goods to be unloaded from the side. The main types of cargo transported by this semi-trailer are building materials, such as stone, sand, etc. Side dump trailer Frame body Q345B high strength structure steel, automatic submerged arc welding throughout beams, and other cross-section main stringers structure for optimum carrying effect.
34 Ton Side Dump Trailer for Sale In Trinidad and Tobago - Side dump trailer used well-known brand axles, suspension systems, high performance, and reliability to use, to ensure the good performance of the semi trailer. 34 ton side dump trailer is equipped with HYVA cylinder, which is more reliable and safer. We supply 34 ton side dump trailer with multiple customization options.

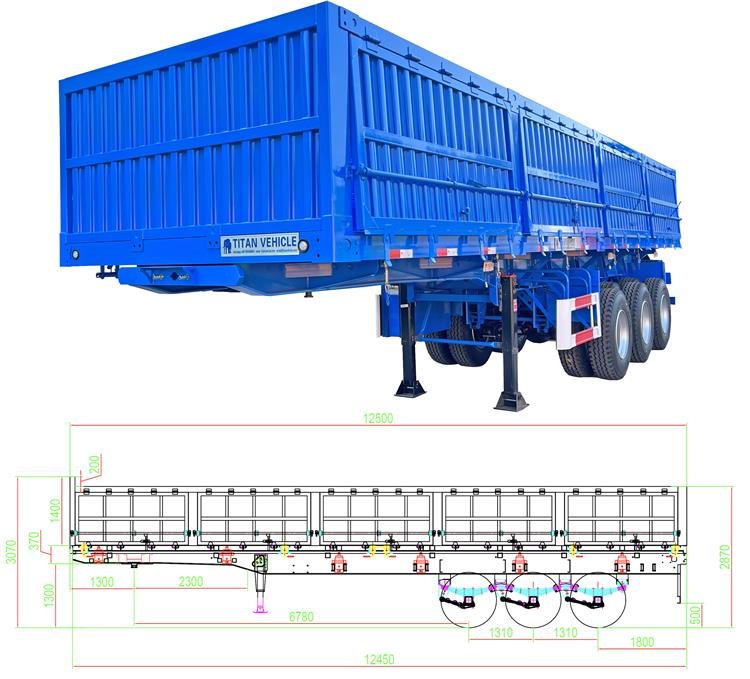

Dimension: 11000mmx2500mmx3200mm

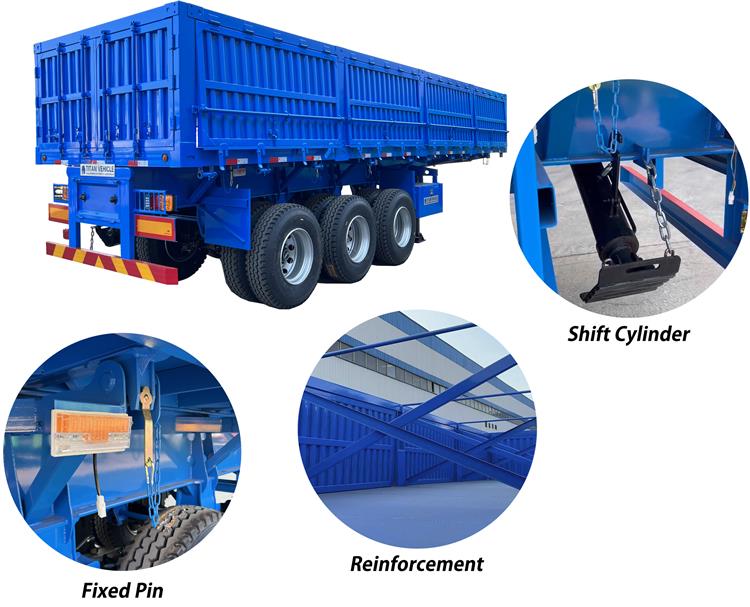

Lifting System: Lifting cylinder 5x130 bore, a shift cylinder
Axle: 3 axle 13T/16T, FUWA / BPW / TITAN Brand
Tire: 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 16mm, Material: T700 steel.
